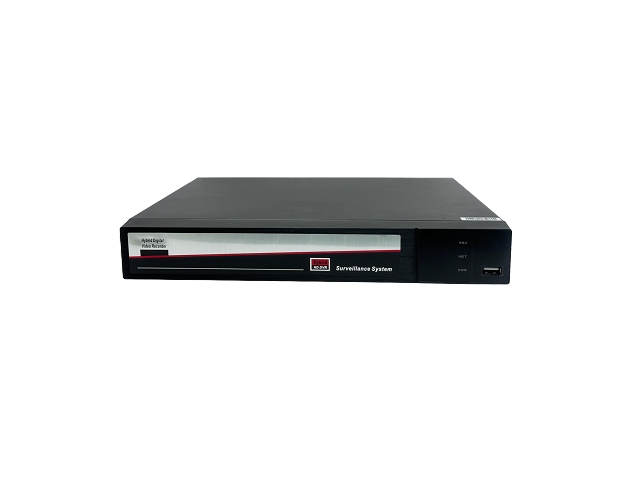

DVR-AHD9906J4-H1(4K)(4K)

  • Item：4+2CH Hybrid Recorder
  • Spec.：1 HDD/4 Audio In/4 Alarm In
Features
  • Video Input Support: Can receive 4 channels of 8MP/5MP/4MP/1080P/720P (AHD / TVI / CVI / Analog) video input, and supports coaxial audio input.
  • IP Camera Integration: Features 2 IP camera input interfaces for expanded video capabilities.
  • Video Compression: H.265 dual-stream video compression format.
  • Status Indicators: Front panel has recording, network, and power indicator lights for easy identification of device operating status.
  • Security Management: Provides multi-level password protection mechanism and management authority settings to ensure system security.
  • Control Method: Features mouse-controlled OSD (On-Screen Display) and PTZ (Pan-Tilt-Zoom) functions.
  • Mobile Device Monitoring: Fully supports Android, iPhone, iPad mobile devices for remote monitoring.
  • Playback Data Methods: Allows quick playback by specified time, event search, or smart search mode, along with a timeline function.
  • Remote Alert: Supports remote video push notification function for real-time alarm alerts.
  • Data Backup: Supports 2 USB devices or data backup via network. E-SATA support for expandable storage.
  • Camera Name Display: Camera names can be displayed on monitoring and playback screens, supporting alphanumeric characters or up to 15 Chinese characters.
    Inquiry
    Inquiry List
    Includes
    • DC Power x1、Manual x1、Mouse x1
    Specifications
    Device Model
    DVR-AHD9906J4-H1
    Power Requirements
    Power input is DC12V.
    Recording Modes
    Supports multiple recording modes, including: manual, continuous, scheduled, motion detection, alarm linkage, and composite modes such as: continuous + motion, continuous + alarm, continuous + motion alarm.
    Storage Device
    Supports installation of 1 x 3.5-inch SATA interface hard drive, with single hard drive support from 1TB to 16TB (subject to brand and compatibility).
    Audio Input/Output
    Provides 4 audio inputs (RCA connectors) and 1 audio output.
    Frame Rate
    Up to 80fps at 5MP resolution; for 4MP, 3MP, 1080P, 720P, and WD1 resolutions, a real-time display rate of 120fps can be achieved.
    RS-485 Interface
    Built-in RS-485 interface for controlling PTZ cameras and connecting control keyboards to operate the main unit.
    Recording Quality Settings
    Supports H.265/H.264, main stream bitrate configurable from 768kbps to 8Mbps; sub-stream bitrate configurable from 128kbps to 1024kbps.
    Playback Speed
    Supports forward and reverse playback, with speed options: x1, x2, x4, x8, x16, x32 speed.
    Product Net/Gross Weight
    Net weight: 0.7kg; Gross weight: 0.85kg (excluding hard drive).
    Network Connectivity
    Supports remote monitoring via IE browser/Edge/Chrome; and provides Chinese 100-channel Central Monitoring Software (CMS).
    Alarm I/O
    Configured with 4 alarm inputs and 1 alarm output.
    On-Screen Display Interface (OSD)
    OSD functions include: hard drive status, time information, camera configuration, recording settings, system menu, and various other contents.
    Recording Frame Rate (fps) NTSC
    5MP format supports 48 fps; 1080P/720P/WD1 formats support 120 fps. The recording frame rate for each video input channel can be adjusted independently.
    Control Accessories
    This product comes standard with a wired mouse.
    Playback Channel Count
    The local unit supports 4 channels of simultaneous video playback; remote supports 4 channels of simultaneous video playback.
    Motion Detection
    Supports motion detection, with 22 x 18 configurable detection areas.
    External Dimensions
    Overall dimensions are 300mm (W) x 50mm (H) x 250mm (D).
    Video Output Interface
    Equipped with 1 CVBS (Spot) output, 1 VGA output (up to 1920x1080), and 1 HDMI output (up to 3840x2160).
    Playback Search Function
    Provides multiple playback search functions, including: timeline search, precise time search, recorded file search, and event log search.
    Video Input Interface
    Provides 4 analog video inputs, supporting 4 mixed modes (AHD/TVI/CVI/CVBS); additionally, it can be expanded to support 2 IP camera inputs.
    Notice
    • Do not expose in moist environment, this product is not waterproof, make sure to install in proper location.
    • Please handle with care, this product contains highly precision components.
    ※Specifications and product designs are subject to change without notice.
