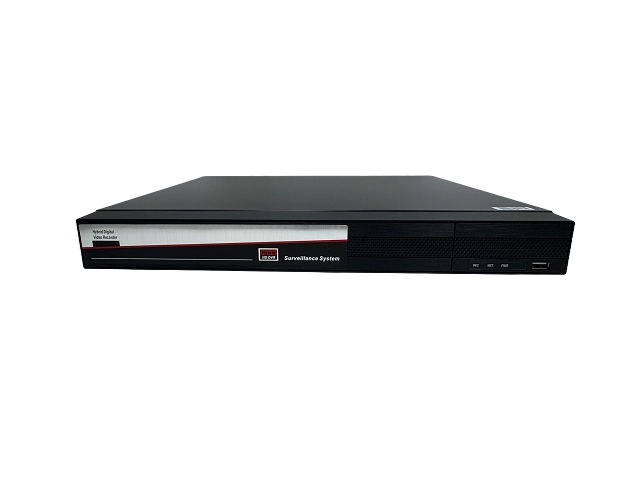

DVR-AHD9916J8-H2 (4K)(4K)

  • Item：8+8CH Hybrid Recorder
  • Spec.：2 HDD/8 Audio In/8 Alarm In
Features
  • Multi-format Video Support: This device supports recording in various video formats including AHD, TVI, CVI, CVBS, and IP, offering high compatibility and flexibility.
  • H.265+ Efficient Compression: Integrates the latest H.265+ video compression technology, significantly enhancing compression efficiency and effectively saving storage space while maintaining excellent image quality.
  • Mobile Device Real-time Monitoring: Supports remote viewing functions on mainstream mobile devices such as iPhone, iPad, and Android, allowing you to monitor surveillance footage anytime, anywhere.
  • Flexible Storage and Time Settings: Provides configurable hard drive data retention days and supports daylight saving time and network time synchronization functions to ensure the accuracy and convenient management of recorded data.
  • Advanced Control and Scheduling: Can set Digital Video Recorder (DVR) group IDs via keyboard and schedule the activation of motion detection functions, increasing system operational flexibility.
  • Smart Screen Adjustment: Features digital zoom for live and playback screens, and allows customizing the camera name and time display position on playback screens for a more intuitive user experience.
  • Comprehensive System Management Functions: Built-in query functions for system actions and network connected user records make it easy for administrators to track system status; it also provides robust user permission management to ensure system security.
  • Convenient Data Backup: Supports direct conversion of recorded data to AVI format for backup, facilitating data export and storage.
  • Dual-stream Technology: Utilizes a dual-stream design, allowing independent H.265 compression quality settings for both network and local ends, and supports simultaneous output, balancing smooth remote monitoring with local recording quality.
    Inquiry
    Inquiry List
    Includes
    • DC Power x1、Manual x1、Mouse x1
    Specifications
    Product Model
    DVR-AHD9916J8-H2
    Power Requirements
    Power input is DC12V, supporting 50Hz/60Hz power frequency.
    Product Dimensions
    Overall dimensions are 380mm (W) x 52mm (H) x 270mm (D).
    Product Net/Gross Weight
    Net weight: 1.5 kg; Gross weight: 1.85 kg (excluding hard drive).
    Video Input Interface
    Provides 8 video inputs, supporting mixed modes, and supports 8 IP camera inputs.
    Video Output Interface
    Features 1 CVBS (Spot) output, 1 VGA output (up to 1920x1080P), and 1 HDMI output (up to 3840x2160).
    Audio Input/Output
    Provides 8 audio inputs (RCA connectors) and 1 audio output.
    Alarm Input/Output
    Equipped with 8 alarm inputs and 2 alarm outputs.
    Live Display Frame Rate
    Up to 80fps at 5MP resolution; for 4MP, 3MP, 1080P, 720P, and WD1 resolutions, a live display frame rate of 120fps can be achieved.
    Recording Frame Rate (NTSC)
    8MP format supports 56 fps; 5MP/4MP formats support 96 fps; 1080P (1920x1080) / 720P/WD1 (960x480) formats support 240 fps. The recording frame rate for each video input channel can be adjusted independently.
    Recording Stream Settings
    Supports H.265/264, main stream bitrate configurable from 768kbps to 8Mbps; sub-stream bitrate configurable from 128kbps to 1024kbps.
    Recording Method
    Supports multiple recording modes, including: Manual, Continuous, Schedule, Motion Detection, Alarm Linkage, and combined modes such as: Continuous + Motion, Continuous + Alarm, Continuous + Motion Alarm.
    Motion Detection
    Supports motion detection with 22 x 18 configurable detection areas.
    Playback Speed
    Supports forward and reverse playback, with speed options: x1, x2, x4, x8, x16, x32 speed.
    Playback Search Function
    Provides multiple playback search functions, including: time slice search, arbitrary time search, file time search, and event search.
    Screen Display Modes
    Provides 1, 4, 6, 8, 9, 16 split screen display modes, and supports automatic screen cycling and up to 7x digital zoom.
    On-Screen Display (OSD)
    OSD functions include: hard drive information, time display, camera settings, recording settings, function menu, and more.
    Storage Device
    Supports installation of 2 x 3.5-inch SATA interface hard drives, with single hard drive support from 1TB to 16TB (subject to brand and compatibility).
    External Storage Interface
    Supports 1 E-SATA interface.
    Network Functions
    Supports IE browser/Edge/Chrome for remote monitoring; also provides a Chinese version of 100-channel Central Monitoring Software (CMS).
    RS-485 Interface
    Built-in RS-485 communication interface for controlling PTZ (Pan/Tilt/Zoom) cameras and connecting control keyboards to operate the main unit.
    Control Accessories
    This product comes standard with a wired mouse.
    Notice
    • Do not expose in moist environment, this product is not waterproof, make sure to install in proper location.
    • Please handle with care, this product contains highly precision components.
    ※Specifications and product designs are subject to change without notice.
