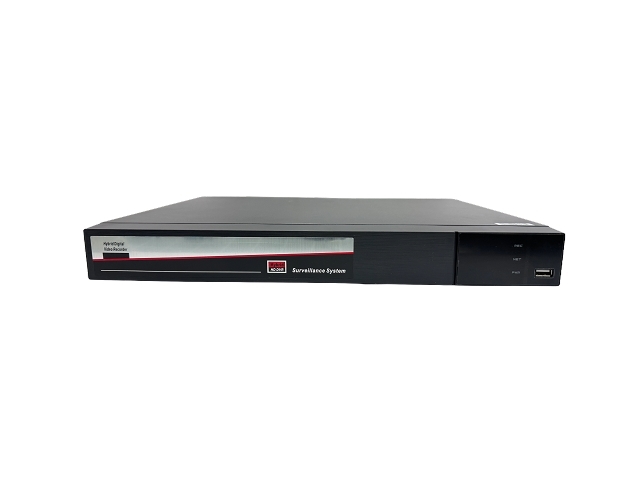

DVR-AHD9924J16-H2 (4K)(4K)

  • Item：16+8CH Hybrid Recorder
  • Spec.：2 HDD/8 Audio In/16 Alarm In
Features
  • Features advanced H.265+ video compression technology, providing excellent image quality while significantly increasing compression ratio and saving storage space.
  • Multi-functional mobile application support (for iPhone, iPad, and Android systems) allows users to perform remote monitoring anytime, anywhere.
  • Fully compatible with various video input formats, including AHD, TVI, CVI, CVBS, and IP video recording, offering highly integrated flexibility.
  • Provides comprehensive storage strategy settings, allowing management of hard drive data retention days, and supports daylight saving time and network automatic time synchronization functions to ensure the accuracy of time data.
  • Supports dual-stream technology, allowing independent H.265 compression quality settings for network transmission and local recording, and enabling simultaneous high-efficiency video output.
  • Recorded files can be directly converted to AVI format for backup, facilitating quick data export and archiving.
  • Built-in motion detection scheduling function can be automatically activated or deactivated according to preset times, enhancing monitoring automation and efficiency.
  • Provides detailed system operation logs and network connection user record query functions, facilitating system management and security auditing.
  • Features a refined user permission management mechanism to ensure the security and integrity of system operations.
  • Allows easy control of DVR group ID settings via keyboard, simplifying the operation process in multi-device environments.
  • Intelligent screen display options, supporting digital zoom for live and playback video, and allowing adjustment of camera titles and date/time display positions on playback screens.
    Inquiry
    Inquiry List
    Includes
    • DC Power x1、Manual x1、Mouse x1
    Specifications
    Product Model
    DVR-AHD9924J16-H2
    Power Supply
    This device is powered by DC12V.
    Operating Temperature
    Operating temperature range is 5℃ to 40℃ (41℉ to 104℉).
    Operating Humidity
    Environmental humidity should be below 90%.
    Device Dimensions
    Product dimensions are 380mm (W) x 52.1mm (H) x 268.4mm (D).
    Video Input Channels
    Supports up to 16 channels of AHD/TVI/CVI analog high-definition input, and flexibly configurable 1 to 16 channels of IP camera access.
    Video Output Interfaces
    Provides 1 HDMI output (supports 3840x2160, 1920x1080, 1280x1024, 1024x768 resolutions), 1 VGA output (supports 1920x1080, 1280x1024 resolutions), and 1 CVBS output (can be used as synchronous output or secondary display).
    Audio Input/Output
    Equipped with 8 audio inputs and 1 audio output.
    Alarm Input/Output
    Provides 16 alarm inputs and 4 alarm output ports.
    Local Playback Channels
    Supports up to 16 channels of simultaneous local video playback.
    Analog HD Recording Resolution
    Up to 192fps at 5MP resolution; 320fps in 5MP Lite mode; 192fps (PAL) or 240fps (NTSC) at 4MP resolution; and 400fps (PAL) or 480fps (NTSC) at 4MP Lite / 1080P / 720P / 960H resolutions.
    IP Video Recording
    Supports up to 8MP resolution, with a recording frame rate of up to 25fps (PAL) or 30fps (NTSC) per channel.
    Recording Quality Settings
    Recording quality can be selected from various levels including highest, higher, medium, lower, or lowest.
    Video Compression Standard
    Utilizes advanced H.265 High Profile (H.265+) compression technology to effectively enhance video compression efficiency.
    Recording Mode Options
    Offers multiple recording modes, including automatic recording, general recording, scheduled recording, motion detection recording, and alarm linkage recording.
    Multi-tasking Operations
    Supports simultaneous operations such as live viewing, recording, playback, network transmission, and data backup.
    Motion Detection Settings
    Customizable with 22x18 areas for precise motion detection.
    Data Backup Methods
    Supports data backup via USB 2.0 interface or network.
    Storage Hard Drive Support
    Supports 2 internal SATA hard drive slots, with single hard drive support from 1TB to 16TB (subject to brand and compatibility).
    External Storage Expansion
    Provides 1 E-SATA interface for storage expansion.
    Hard Drive Storage Policy
    Can be set to stop recording when the hard drive is full or automatically overwrite old data.
    PTZ Camera Control
    Supports PELCO-P, PELCO-D, and CoC (UTC) protocols for controlling PTZ cameras.
    Mobile Device Support
    Compatible with mobile devices such as iPhone, iPad, and Android for remote monitoring.
    Network Connectivity
    Equipped with a 10/100/1000 M Base-T network interface to ensure stable and efficient data transmission.
    Remote Viewing Methods
    Remote monitoring can be performed via Central Monitoring Software (CMS), mobile application (APP), or web browsers (IE, Edge, Chrome).
    Network Protocol Support
    Supports various network protocols such as TCP/IP, PPPoE, DHCP, and DDNS (Auto DDNS) to ensure stable and flexible network connectivity.
    Remote Control Functions
    Provides a rich set of remote control options, including video display, recording playback, data backup, parameter settings, and PTZ camera operations.
    Screen Split Display
    Supports 1, 4, 9, 16, 25 split screen display modes.
    Notice
    • Do not expose in moist environment, this product is not waterproof, make sure to install in proper location.
    • Please handle with care, this product contains highly precision components.
    ※Specifications and product designs are subject to change without notice.
