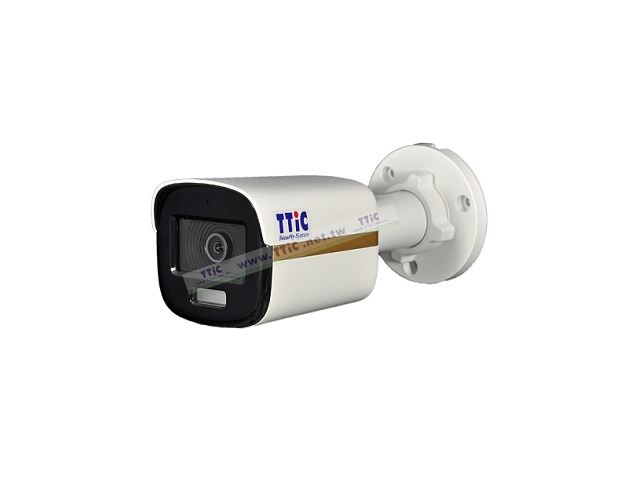

KM-CSL890(Star-level)

  • Item：Water-proof Color Camera
  • Spec.：AHD/1080P/Star-level
Features
  • Brilliant color images 24 hours a day.
  • Using smart FSI photoelectric technology and F1.0 aperture.
  • 2MP , the highest resolution is 1920 × 1080.
  • 130dB WDR, 3D DNR noise suppression.
  • 2.8mm / 3.6mm / 6mm (F1.0) prime lens.
  • Intelligent fill light in dark environment, warm white light irradiation distance up to 20 meters.
  • Coaxial audio,Built-in microphone.
  • Support TVI / AHD / CVI / CVBS.
  • IP67 waterproof and dustproof grade.
    Inquiry
    Inquiry List
    Includes
    • High-level transformer *1 (Pass the UL Certification )
    • One pack of screws group.
    Specifications
    Model
    KM-CSL890
    Image Unit
    2MP CMOS
    System
    PAL / NTSC
    Image Size
    1920(H)x1080(V)
    Resolution
    TVI: 1080P@30FPS, 1080P@25FPS
    AHD: 1080P@30FPS, 1080P@25FPS
    Min. Illumination
    Color: 0.0005 Lux @(F1.0, AGC ON)，Under white light:0 Lux
    Electronic Shutter
    PAL: 1/25sec.~1/50,000sec.
    NTSC: 1/30sec.~1/50,000sec.
    Slow Shutter
    UP to 16X
    Len
    2.8mm / 3.6mm Fixed focal length lens，F1.0
    Viewable Range
    2.8mm，Level:98°，Vertical:52°，Diagonal:116°
    3.6mm，Level:77°，Vertical:42°，Diagonal:91°
    Day and Night
    Full-time color (warm white)
    WDR
    ≥130dB
    DNR
    YES
    Adjustable Angle
    Level 0~360°，Vertical 0~90°，Rotate 0~360°
    White Light
    Auto/Off
    Video Mode
    Standard / Vivid / Bright
    AGC
    High / Medium / Low / Off
    White Balance
    Automatic / Manual
    Auto Exposure Mode
    WDR / BLC / HLC / General mode
    Privacy Mask
    4
    Motion Detection
    4
    Noise Suppression
    3D / 2D DNR
    Image Adjustment
    Brightness / Contrast / Sharpness / Mirror / Smart White / Image Correction / Anti-Moire
    Video Output
    TVI / AHD / CVI / CVBS
    Audio Input
    Coaxial audio，Built-in microphone
    Operating Temperature
    Temperature -40°C~60°C;Operating Humidity Less than 90%
    Power Source
    12V DC±25%
    ※It is recommended to use a single power supply for one camera
    Notice
    • Do not twist the waterproof body while installing, and not tear the warranty stickers.
    • Do not open it on your own. Please keep intense light away while installing.
    • The product is with dustproof design. Please keep the outside body clean to maintain the original function.
    • Power supply is DC12V. Please use regulated power supply.
    • When the camera is fixed, please lock the body and mount tightly to avoid falling to the ground and damaging the camera.
    • Please handle with care, this product contains highly precision components.
    • The product is with waterproof function, but it`s not an underwater camera! Do not use for diving!
    ※Specifications and product designs are subject to change without notice.
