Model

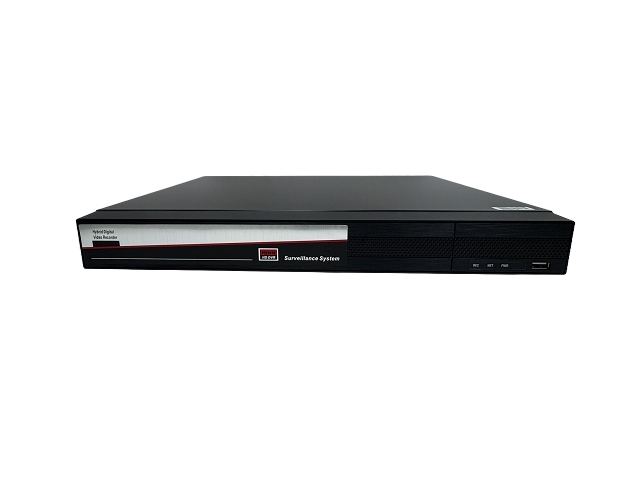

NVR-9916G-H4(P16) |
Network Interface
Equipped with 1 x RJ45 10/100/1000 Mbps network interface to ensure high-speed and stable data transmission. |
Playback Method
Supports diverse playback methods, including face recognition, smart search, time and event search, and specific time point search. |
Alarm Input (NVR)
Provides 16 sets of NVR local alarm inputs. |
Alarm Input (IPC)
Can receive alarm inputs from 16 IP cameras. |
IP Video Input
Supports 16 IP video input channels. |
Operating Temperature and Humidity
Recommended operating temperature range is -10°C to 50°C, operating humidity is 10% to 90%. |
Local Output
Provides 1 x RCA audio output interface. |
Recording Compression Mode
Supports multiple compression modes such as H.265, H.264, offering flexible video quality and storage efficiency options. |
Recording Resolution and Frame Rate
Supports various recording resolutions, including 8MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, all capable of 25/30fps. |
System Platform
Uses Embedded Linux operating system, providing a stable and reliable operating environment. |
Hard Drive Interface and Capacity
Supports 4 SATA hard drive interfaces, with single hard drive support: 1TB~16TB (subject to brand and compatibility); also supports e-SATAx1. |
POE Interface
Equipped with 16 RJ45 PoE interfaces, simplifying the installation and power supply of network cameras. |
Alarm Trigger Actions
Upon alarm trigger, it can perform actions such as recording, screenshotting, triggering preset points, sending E-mail notifications, and pushing APP messages. |
Remote Backup
Supports remote data backup via network. |
IP Video Output
Provides 1 x HDMI output (supports 3840 x 2160 / 1920 x 1080 / 1280 x 1024 / 1024 x 768 resolution) and 1 x VGA output (supports 1920 x 1080 / 1280 x 1024 / 1024 x 768 resolution). |
Local Backup
Local data backup can be performed via USB hard drives or portable hard drives (portable hard drives may have compatibility limitations). |
Serial Interface
Provides 2 x RS485 interfaces, respectively for keyboard control (A,B) and PTZ camera control (Z,Y). |
Video Load Bandwidth
Total load bandwidth reaches 160Mbps, ensuring stable transmission of high-quality video. |
Max Simultaneous Playback Channels
Supports simultaneous playback of 16 channels. |
Playback Functions
Provides diverse playback operations including play, pause, forward playback, reverse playback, and digital zoom. |
Two-Way Audio
Provides 1 x RCA two-way audio interface, supporting real-time voice communication. |
Recording Stream
Supports dual-stream or single-stream recording. |
Mobile Monitoring Platform
Supports iOS and Android mobile monitoring system platforms for remote real-time monitoring. |
Recording Modes
Provides multiple modes including automatic recording, manual recording, scheduled recording, and alarm recording. |
Alarm Output (NVR)
Provides 4 sets of NVR local alarm outputs. |
Power Supply
Adopts ATX power supply design, supports AC 110V / 220V input, with power consumption less than 20W without hard drives. |
Alarm Modes
Supports manual, sensor, motion, and abnormal event alarm modes. |
USB Interface
The front panel is equipped with 1 x USB 2.0 interface, and the rear panel has 1 x USB 3.0 interface. |
Remote Control
Supports remote display, playback, backup, parameter settings, and PTZ camera operation. |
Audio Input
Supports 16 audio input channels. |
Alarm Output (IPC)
Can control alarm output for 16 IP cameras. |
Connection Modes
Supports multiple network communication protocols, including TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, RTSP, and ONVIF. |
Dimensions and Weight
Device dimensions are 440 x 390 x 70 mm (width x depth x height), with a net weight of approximately 4.5 kg. |
Browse Methods and Multi-User Monitoring
Supports monitoring via authorized CMS (100CH), Mobile phones, and IE browser, and allows multiple users to monitor simultaneously online. |
