Type

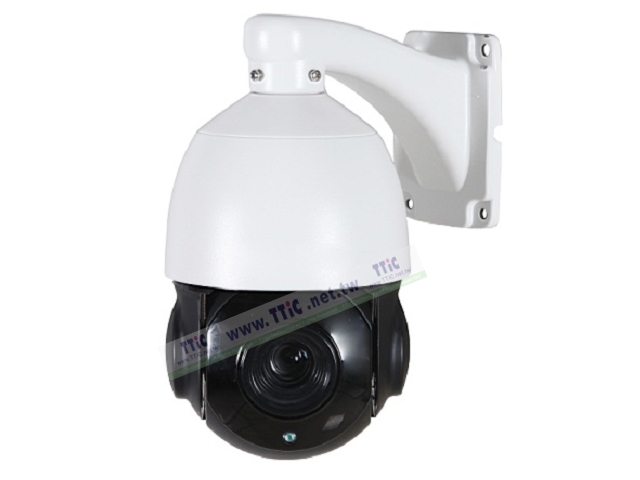

SPD-IP-TBH25IR(1080P) |
Sensor
1/2.8", 2 megapixel, Progressive scan, CMOS |
Lens
5~125mm (25x optical zoom), AF automatic focusing and motorized zoom lens |
Optical Zoom
25 |
DORI Distance
Lens 5~25 mm / Detect 85.3~1706 m / Observe 34.1~682.8 m / Recognize 17.1~341.4 m / Identify 8.5~170.7 m |
Angle of View (H)
53.4° ~ 2.8° |
Angle of View (V)
32.3° ~ 1.5° |
Angle of View (O)
60.7° ~ 3.1° |
Shutter
Auto/Manual, Shutter time: 1 ~ 1/100000s |
Minimum Illumination
Colour: 0.01Lux (F1.5,AGC ON)0Lux with IR |
Iris
Auto/Manual, F1.5 ~ F3.8 |
Day/Night
IR-cut filter with auto switch (ICR) |
Digital Noise Reduction
2D/3D DNR |
S/N
>52dB |
IR Range
UP to 150m (492ft) |
Defog
Digital Defog |
WDR
DWDR |
Video Compression
Ultra 265, H.265, H.264, MJPEG |
H.264 Code Profile
Baseline Profile, Main Profile, High Profile |
Frame Rate
Main Stream: 2MP (1920*1080), Max 30fps;
Sub Stream: 720P (1820*720), Max 30fps;
Third Stream: D1 (720*576), Max 30fps |
HLC
Supported |
BLC
Supported |
EIS
Supported |
OSD
Up to 8 OSDs |
Privacy Mask
Up to 24 areas |
ROI
Up to 8 areas |
Motion Detection
Up to 4 areas |
Behavior Detection
Intrusion, Cross line, Motion detection |
Intrusion
Enter and loiter in a pre-defined virtual region |
Cross Line
Cross a pre-defined virtual line |
Motion Detection
Moving within a pre-defined virtual region |
Recognition
Face detection, Audio detection |
Intelligent Identification
Object Left, Object Moving |
Statistical Analysis
People counting |
General Function
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
Audio Compression
G.711 |
Two-way Audio
Supported |
Suppression
Supported |
Sampling Rate
8KHZ |
Edge Storage
Micro SD, up to 256GB |
Network Storage
ANR |
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API |
Pan Range
360° |
Pan Speed
2°/s~75°/s
Preset speed: 180°/s |
Tilt Range
-15°~90° (Auto reverse) |
Tilt Speed
2°~90°/s; (Auto reverse)
Preset speed: 80°/s |
Number of Presets
1024; (Auto reverse) |
Patrol
Preset patrol, Route patrol, Recorded patrol; (Auto reverse) |
Home Position
Supported; (Auto reverse) |
Audio I/O
Audio Cable
1 Input: impedance 35kΩ; amplitude 2V [p-p]
1 Output: impedance 600Ω; amplitude 2V [p-p] |
Alarm I/O
2/1; (Auto reverse) |
Network
1 RJ45 10M/100M Base-TX Ethernet; (Auto reverse) |
Power
DC 12V±10% , PoE (PSE Required)
Power consumption: 4 ~27.6W |
Dimensions (Ø x H)
Ø220 x 369mm (Ø8.9”x14.2”) (Auto reverse) |
Weight
3.3kg (7.26lb) (Auto reverse) |
Working Environment
-40°C~65°C (-40°F ~ 149°F), Humidity: ≤95% RH (non-condensing) (Auto reverse) |
Ingress Protection
IP66 (Auto reverse) |
Reset Button
Supported (Auto reverse) |
