Model

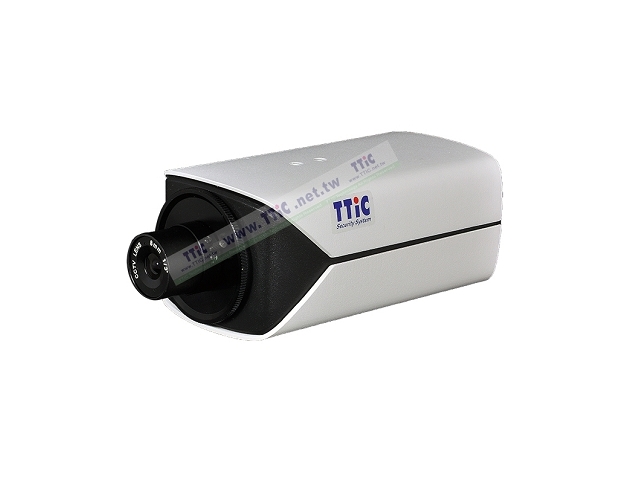

IP-C3023S |
Image Sensor
1 / 3" CMOS |
Image Size
2592 × 1520 |
Electronic Shutter
1 / 30 s ~ 1 / 100,000 s |
Min. Illumination
0.0028 lux@F1.2,AGC ON
0.001 lux@F1.2,AGC ON |
Lens
CS Mount |
WDR
120dB |
Day & Night
ICR auto switch |
BLC
YES |
HLC
YES |
Digital Defog
YES |
Focus Adjustment
Manual |
Digital DNR
3 DNR |
Video Compression
Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG |
Compression Standard
Baseline Profile / Main Profile / High Profile |
Resolution
4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
Main Stream (S1)
4MP / 2K / 3MP / 1080P / 720P @30fps |
Sub Stream (S2)
720P / D1 / CIF / 480 × 240 @30fps |
Third Stream (S3)
D1 / CIF / 480 × 240 @30fps |
Bit Rate
64 Kbps ~ 8 Mbps |
Bit Rate Type
VBR / CBR |
Image Settings
ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser |
ROI
Each ROI to be configured separately |
Audio Compression
G.711A / U |
Two-way audio
YES |
Network
RJ45 |
RS485
YES |
Video Output
CVBS output (BNC × 1) |
Audio Line In
1CH; Built-in MIC× 1 |
Audio Line Out
1CH |
Alarm Input
2CH alarm input |
Alarm Output
2CH alarm output |
SD Card
Built-in micro SD card slot; Up to 128GB |
Network Remote Storage
YES |
Hardware Reset
YES |
Perimeter Protection
Line crossing, region entrance/Exiting/Intrusion (human/motor vehicle / Non-motor vehicle classification) |
Target Counting
Line crossing human /Motor vehicle/Non-motor vehicle counting |
Exception Detection
Scene change, Video blur and video color cast detection |
Face Detection
Face detection and face capture |
General Intelligence
Crowd density detection, heat map, object abandoned / missing detection (These are being developed and coming soon.) |
Remote Monitoring
Web browsing,CMS remote control |
Online Connection
Support simultaneous monitoring for up to 10 users Support multi-stream real time transmission |
Network Protocol
UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS |
Interface Protocol
ONVIF |
Smart Alarm
Motion detection; Sensor alarm; SD card error; SD card full; IP address conflict; Network disconnection |
General Function
Watermark, IP address filtering, video mask, heartbeat, password protection, non- photosensitive switch, image distortion correction |
PoE
Yes, IEEE802.3af |
Power Supply
DC12V / AC24V / PoE |
Power Consumption
< 11W |
Operating Environment
- 30 ° C ~ 60 ° C (-22° F~140° F)
Humidity: less than 95 % (non-condensing) |
Dimensions
160.8 × 79 × 64 mm |
Weight
Approx. 500g |
Installation
Ceiling mounting; Wall mounting |
