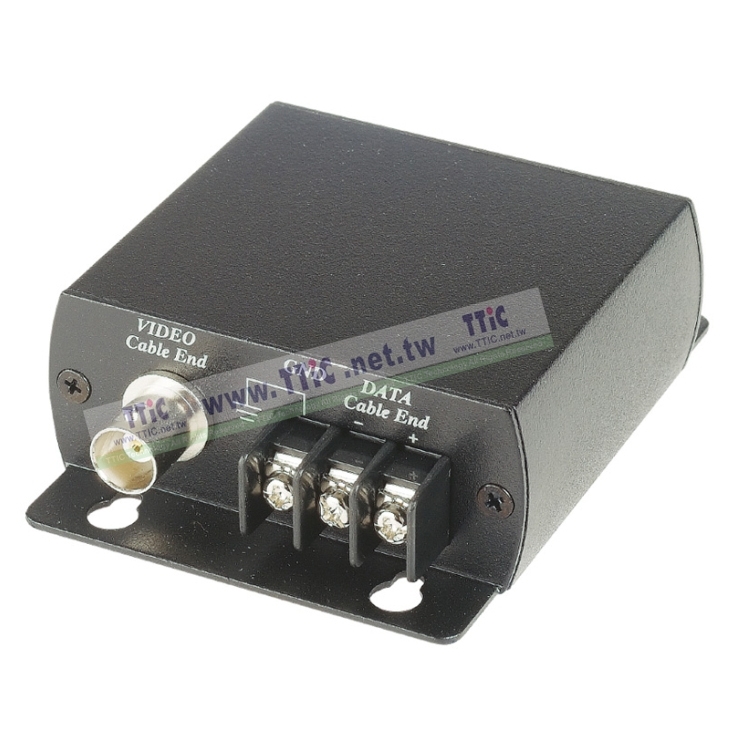

SP005

  • Item：Video & Data Surge Protec
Features
  • Resolution up to 4K.
  • Response time less than 1 ns.
    Inquiry
    Inquiry List
    Specifications
    Model
    SP005
    Max. Surge Voltage
    4 kV
    Surge Life
    300 surges (100A per surge)
    Normal Resistance Across Coax
    10,000 MΩ
    Band Pass
    0 to 1 GHz
    Response Time
    Less than 1ns
    Surge Resistance
    Approx. 0Ω
    Power Passing Capability
    130V AC/ DC, 65 Vrms@10 Amps
    Insertion Loss​​​​​​​
    Less than 0.2 dB
    Return Loss (75Ω)
    16dB
    Equipment End
    1 x BNC Female, 1 x 2-pin Terminal Block
    Cable End
    1 x BNC Female, 1 x 3-pin Terminal Block
    Operation
    -10 to 75℃
    Storage
    -40 to 90℃
    Humidity
    Up to 95%
    Dimensions
    87 x 67 x 27mm
    Weight
    136g
    Notice
    • Do not expose in moist environment, this product is not waterproof, make sure to install in proper location.
    • Please handle with care, this product contains highly precision components.
    ※Specifications and product designs are subject to change without notice.
