VT-PC90PI

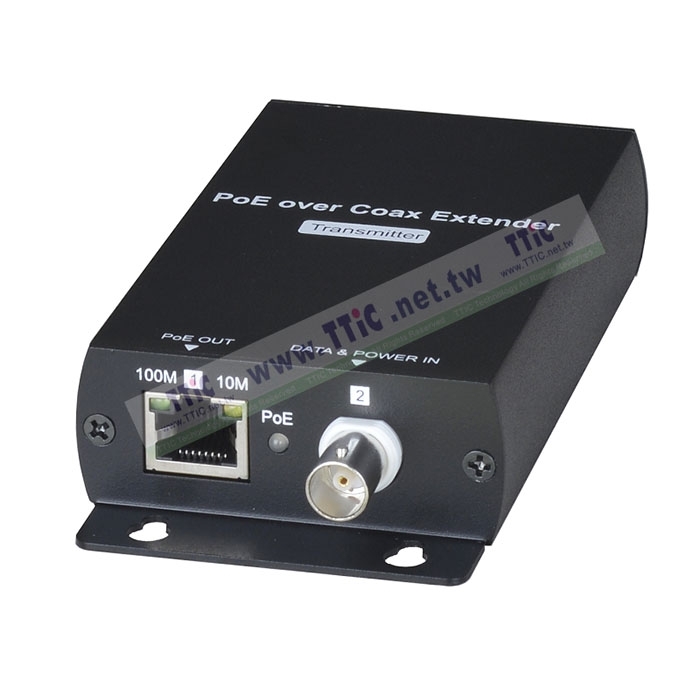

  • Item：Long Reach PoE over Coax Extender
Features
  • Extends PoE signal over a coaxial cable.
  • Signal extension up to 1000M over RG59/ 6U coaxial cable.
  • Provides up to 90W power for remote PoE device.
  • Power source from either a PoE switch or an external power adapter.
  • Network bandwidth up to 100Mbps.
  • Built-in 30kV ESD, 40A EFT, and 30A surge at RJ45 side.
  • Supports Full duplex and half duplex mode and Auto MDI/MDI-X switching.
    Inquiry
    Inquiry List
    Includes
    • VT-RP90PI x 1+VT-RPC90PI x 1
    Specifications
    ITEM NO.
    VT-RP90PI x 1+VT-RPC90PI x 1
    Standard
    IEEE 802.3 10BASE-T Ethernet
    IEEE 802.3u 100BASE-TX Fast Ethernet
    IEEE 802.3bw 100BASE-T1 Ethernet
    IEEE 802.3 N-Way Auto-Negotiation
    IEEE 802.3x Full Duplex Operation and Flow Control
    IEEE 802.3az Energy Efficient Ethernet
    IEEE 802.3af Power over Ethernet
    IEEE 802.3at Power over Ethernet Plus
    IEEE 802.3bt Power over Ethernet Plus
    Data Rate
    10 Mbps / 100 Mbps
    Distance (Max)
    Long Reach 10Mbps 800M
    Long Reach 100Mbps 500M
    Power Supply
    48 ~ 56V Regulated / 12 ~ 56V Regulated
    Power Consumption
    1W
    Ambient Temperature
    0~50 Celsius
    Notice
    • Do not expose in moist environment, this product is not waterproof, make sure to install location.
    • Please handle with care, this product contains highly precision components.
    ※Specifications and product designs are subject to change without notice.
