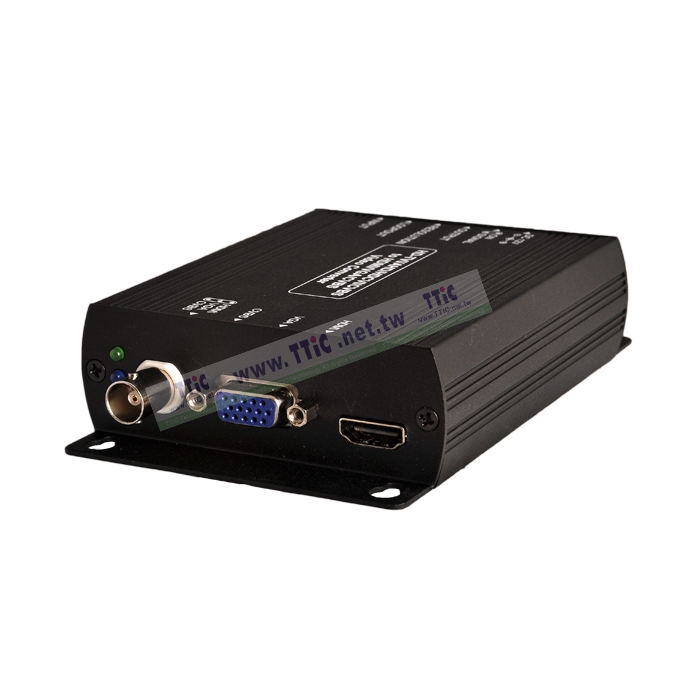

VT-EDH100DA

  • Item：HD converter
  • Spec.：HDMI/VGA/CVBS/5MP
Features
  • Converts HDTVI, AHD, HDCVI, NTSC/ PAL, 960H to HDMI/ VGA/ CVBS.
  • Resolution up to 8MP@15Hz for video input.
  • Resolution up to 1080p@60Hz for HDMI, VGA output.
  • Built-in loop out for CVBS display or DVR.
  • Output HDMI/ VGA/ CVBS (one signal at a time).
    Inquiry
    Inquiry List
    Includes
    • High-level transformer *1 (Pass the UL Certification )
    • Manual *1
    Specifications
    ITEM NO.
    VT-EDH100DA
    Video Format
    HD-TVI / AHD / HDCVI / HDMI / VGA / CVBS
    Max. Input Video Resolution
    5MP@25/30Hz
    Max. HDMI Resolution
    1080P@60Hz, 720P@60Hz
    Max. VGA Resolution
    1920x1080@60Hz, 1280x720@60Hz
    Max. Composite Video Resolution
    480i@60Hz(NTSC), 576i@60Hz(PAL)
    Video Input
    1xBNC (75Ω 1Vpp)
    Video Output
    1xHDMI Type A, 1xD-SUB 15, BNC(75Ω 1Vpp)
    Video Loop-out
    1xBNC (75Ω 1Vpp)
    Switch
    2xTact Switch
    Power Supply
    12V 500mA
    Power Consumption
    250mA
    Operation
    0~55°C
    Storage
    -20~85°C
    Humidity
    up to 95%
    Dimension
    88 x 130 x 30 mm
    Weigh
    270g
    Notice
    • Do not expose in moist environment, this product is not waterproof, make sure to install in proper location.
    • Please handle with care, this product contains highly precision components.
    ※Specifications and product designs are subject to change without notice.
