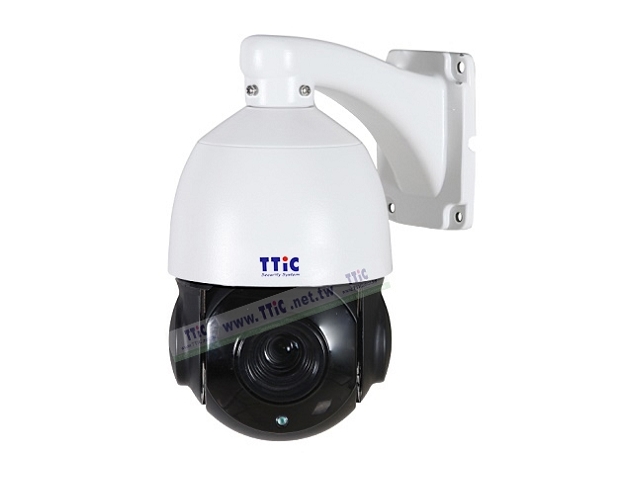

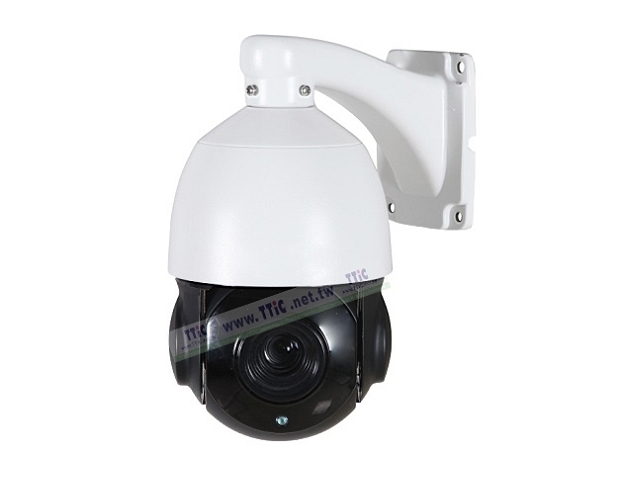

SPD-TBH18-IR(1080P)

  • Item：Speed Dome Camera
  • Spec.：18X/IR 60M
Features
  • OSD menu is available.
  • Keep original analog system.
  • AHD/TVI/CVI/CVBS selectable.
  • 4. 5'' half metal body construction.
  • R Real time transmission ,lossless video.
  • OSRAM Array LEDs with IR range up to 60meters.
  • LLong distance transmission up to 500 meters.
  • Programmable 220 preset positions.
  • RS-485 multiple protocols, Pelco-P, Pelco-D compatible.
  • IP66-rated waterproof.
Inquiry
Inquiry List
Includes
  • Regulator Adapter.
  • Screws.
  • Manual.
Specifications
Model
SPD-TBH18-IR(1080P)
System
NTSC／PAL
Pick up Device
CMOS:2.0 Mega 1920x1080
Video Output
AHD / TVI / CVI / 1280H(類比)
Zoom Lens
18X(4.7mm~84.6mm) F1.6~F3.5
S/N Ratio
60dB
Γ, Gamma Correct
0.45
White Balance
Auto/ ATW/ AWC/ Indoor/ Outdoor/ Manual
Electronic Shutter
AE：1/60（1/50）～ 1/100,000
Minimum Illumination
Color : 0.5Lux / B/W : 0Lux IR ON
Frequency
15.734 KHz／60 Hz；15.625 KHz／50 Hz
Video Out
1.0 Vp-p，75 ohm
Pan
Range: 360° (endless) ; Speed:0.1~60°/S
Tilt
Range: -5°-90°(Auto Flip 180°) ; Speed: 0.1°~40°/S
Guard Position
Preset/ Auto Cruising/ Auto Scan/ Pattern Tour
Power up Action
Preset/ Auto Cruising/ Auto Scan/ Pattern Tour
BLC / WDR
Off / BLC / HLC ∕ Off / On
Coaxlal Cable Transmition Distance(3C/5C)
300/500 M
Twisted Cable Transmition Distance(Cat5.e standard)
200M
Power Supply
DC12V / 3A
Weight
N.W.／G.W.：2.5 kg／2.8 kg
Operating Temperature
-40℃～60℃
Dimensions
215(W) mm x 125(D) mm
Notice
  • Do not twist the waterproof body while installing, and not tear the warranty stickers.
  • Do not open it on your own. Please keep intense light away while installing.
  • The product is with dustproof design. Please keep the outside body clean to maintain the original function.
  • Power supply is DC12V. Please use regulated power supply.
  • When the camera is fixed, please lock the body and mount tightly to avoid falling to the ground and damaging the camera.
  • Please handle with care, this product contains highly precision components.
  • The product is with waterproof function, but it’s not an underwater camera! Do not use for diving!
※Specifications and product designs are subject to change without notice.
