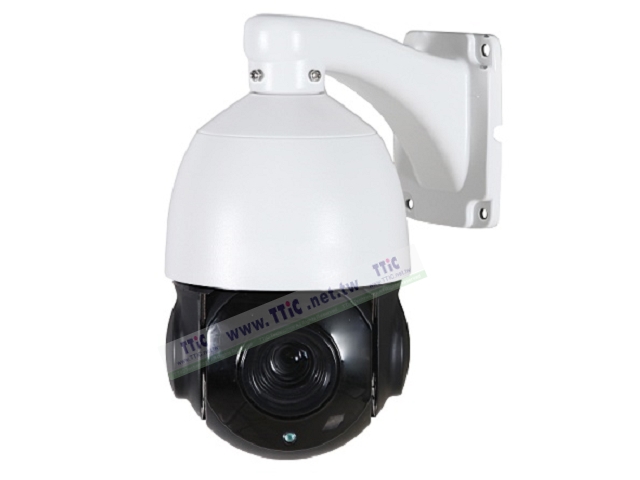

SPD-IP-TBH22IR(1080P)

Features

120dB optical wide dynamic, meet the high contrast scene monitoring needs.
Focus is fast and accurate, which is convenient for quick locking of monitoring targets.
Third-generation infrared technology, infrared distance 150 meters.
Improve infrared transmittance and effectively suppress exposure.
High-definition optical glass window, light transmission rate increased by 6%, more suitable for high-definition monitoring applications.
The window surface adopts Swiss imported coating, which has good waterproof and dustproof characteristics.
Intelligent infrared technology adjusts the brightness of the infrared light in real time according to the brightness of the screen to avoid over exposure.
Supports 2 million (1920*1080)/30fps, clearer images.
Supports true dual stream 1080P/30fps, richer image applications.
Advanced H.265 encoding algorithm, higher compression efficiency.
AAC-LC broadband audio coding, high-definition sound quality; support for noise suppression.
Three-stream package capability to meet real-time streaming and storage flow requirements with different bandwidths and frame rates.
Customize OSD to provide customized effects for multiple content styles.
Support different permissions to log in to improve security.

Inquiry

Inquiry List

Includes

Specifications

Model SPD-IP-TBH22IR(1080P)
Image Sensor 1/2.9", Progressive scan, 2.0 megapixel, COMS
Zoom 5.2~114.4mm
Imaging Device 1/2.9" inch progressive 2 megapixel CMOS image sensor
Shutter Auto/Manual, Shutter Range: 1/6~1/100000s
Minimum Illumination 0.01 Lux (F1.5 , AGC ON) , 0 Lux
Len Type Automatic/Manual, Aperture range: F1.5~F4.4
S/N Ratio >55dB
WDR 120dB
Day & Night Auto/Manual/Timing
Resolution 1080P(1920*1080) @30fps
Compression Method Ultra 265, H.265, H.264, MJPEG
Triple Streaming 3
OSD Time, Custom, Preset position, PTZ coordinates, Magnification, Serial port information, Position information, Network information
Privacy Coverage Support
Coding Format AAC-LC、G.711
Voice Intercom Support
Horizontal Speed 0.1°/s~240°/s / Preset speed: 300°/s
Vertical Speed 0.1°~160°/s ; Preposition: 240°/s
Horizontal Range 360°
Vertical Range -15°~90°(Automatic flip)
Preposition 1024
Cruise Supports Preset Cruise, Track Cruise and Record Cruise
Alarm 1 IN ; 1 OUT
Audio 1 IN ; 1 OUT
Storage Micro SD，the max capacity is 128GB
Power Supply AC 24V±25% (default power supply), DC 24V/power consumption: 11W minimum power consumption, 47W maximum power consumption, POE
Dimensions Ø 220x369 mm
Weight 3.4kg (7.5lb)
Fill Light Built-in infrared light
Working Environment -40˚C ~ +60˚C (-40˚F ~ 140˚F), 10%~90% RH (non-condensing)
Ingress Protection IP66

Notice

Do not twist the waterproof body while installing, and not tear the warranty stickers.
Do not open it on your own. Please keep intense light away while installing.
The product is with dustproof design. Please keep the outside body clean to maintain the original function.
Power supply is DC12V. Please use regulated power supply.
When the camera is fixed, please lock the body and mount tightly to avoid falling to the ground and damaging the camera.
Please handle with care, this product contains highly precision components.
The product is with waterproof function, but it’s not an underwater camera! Do not use for diving!

※Specifications and product designs are subject to change without notice.
