TBH-CAH768-30

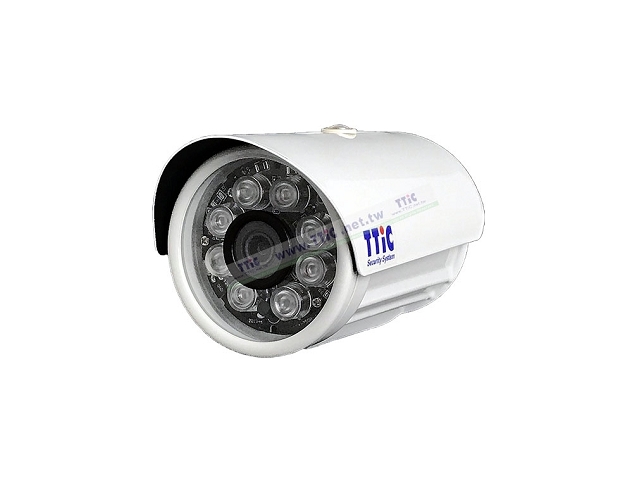

  • Item：2MP Bullet AHD Camera
  • Spec.：2MP / 30M IR
Features
  • Board lens: 3.6mm / 6mm(optional)
  • Built-in IR Cut Filter, accurate focus for  Day & Night.
  • 2DNR/3DNR
  • OSD control cable.
    Inquiry
    Inquiry List
    Includes
    • High-level transformer *1 (Pass the UL Certification ).
    • Special Camera Bracket.
    • One pack of screws group.
    Specifications
    Model
    TBH-CAH768-30
    System
    NTSC／PAL
    Pick up Device
    1/2.8" SONY CMOS : 2.0 Mega
    Video Output
    AHD / CVBS (optional : TVI / CVI)
    Min. Illumination
    0.01 Lux，0 Lux with IR/ON
    Resolution
    1920(H) x 1080(V)
    Solution
    2441H + SONY 323
    Synchronization
    Internal
    Electronic Shutter
    AE：1/60（1/50）～1/100,000S
    Scanning System
    2:1 Interlace
    IR Distance
    25-30M (8pcs matrix LED)
    Lens Type
    Board Lens: 3.6 mm
    S/N Ratio
    More than 60 dB(AGC OFF)
    Control
    CoC (Control Over Coaxial)
    2DNR
    Yes
    3DNR
    Yes
    Ingress Protection
    IP66
    Coaxial Cable Transmition Distance (3C/5C)
    300 / 500 M
    Twisted Cable Transmition (Cat 5.e standard)
    200 M
    Power Supply
    DC12V / 1A
    Operating Temperature／Storage Temperature
    -10℃ ~ 50℃ (14℉ ~ 122℉ )／ -20℃ ~ 70℃ (-4℉ ~ 158℉)
    Dimensions
    75(D) mm x140(W) mm
    Notice
    • Do not twist the waterproof body while installing, and not tear the warranty stickers.
    • Do not open it on your own. Please keep intense light away while installing.
    • The product is with dustproof design. Please keep the outside body clean to maintain the original function.
    • Power supply is DC12V. Please use regulated power supply.
    • When the camera is fixed, please lock the body and mount tightly to avoid falling to the ground and damaging the camera.
    • Please handle with care, this product contains highly precision components.
    • The product is with waterproof function, but it’s not an underwater camera! Do not use for diving!
    ※Specifications and product designs are subject to change without notice.
