TBH-CAH9190

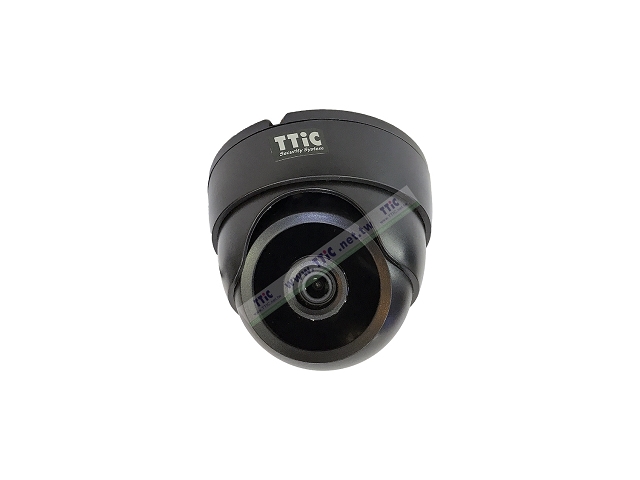

  • Item：2MP Fixed Dome AHD Camera
  • Spec.：AHD/1080P
Features
  • 1/2.8'' CMOS 1080P 2 mega pixel Dome camera
  • 3DNR/2DNR
  • Mega pixel lens 4mm or 6mm
  • AHD 1080P
  • Auto gain control、AWB、Back light
    Inquiry
    Inquiry List
    Show Effect
    Day

    Night

    Includes
    • High-level transformer *1 (Pass the UL Certification )
    • One pack of screws group
    Specifications
    Model
    TBH-CAH9190
    System
    NTSC／PAL
    Pick up Device
    1/2.8”SONY CMOS :2Mega
    Video Output
    AHD 1080P
    Min. Illumination
    0.01 Lux，0 Lux with IR/ON
    Resolution
    1920(H) x 1080(V) @ 30 FPS
    S/N Ratio
    More than 55 dB（AGC OFF）
    Γ, Gamma Correct
    0.45
    AWB
    Auto（2500∘K～9500∘K）
    Electronic Shutter
    1/60（1/50）～1/100,000
    Synchronization
    Internal
    Frequency
    15.734 KHz／60 Hz；15.625 KHz／50 Hz
    Video Out
    1.0 Vp-p，75 ohm
    Scanning System
    2：1 interlace
    Coaxlal Cable Transmition Distance(3C/5C)
    300/500 M
    Twisted Cable Transmition Distance(Cat5.e standard)
    200M
    Power Supply
    DC 12V；1A
    Weight
    N.W.／G.W.：0.152Kg／0.192Kg
    Operating Temperature
    -10℃～50℃
    Dimensions
    90(D) mm x70(H) mm
    Notice
    • Do not expose in moist environment, this product is not waterproof, make sure to install in proper location.
    • Please handle with care, this product contains highly precision components.
    ※Specifications and product designs are subject to change without notice.
