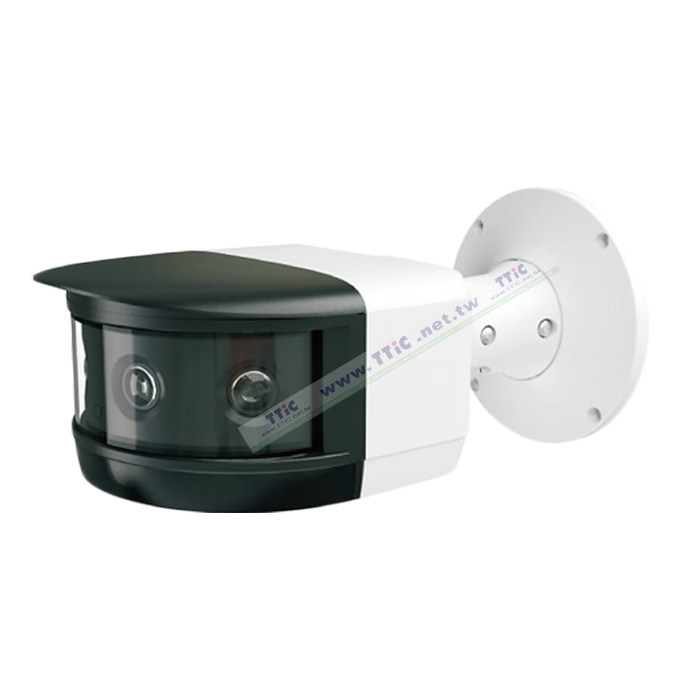

TS-CAH8260(4K/Wide-angle/Face)

  • Item：8MP IP Bullet Camera
  • Spec.：8MP/Wide-angle/IR 20M/Face
Features
  • Smart H.265 / H.264 / MJPEG.
  • 8MP (4096 x 1800).
  • 20m IR night view distance.
  • 3 DNR, DWDR, HLC, BLC, Digital Defog, EIS, Smart IR.
  • ICR auto switch, true day/night.
  • Built-in micro SD card slot, up to 256GB.
  • Support three streams.
  • Support ROI coding.
  • Two-way audio.
  • IP67 & IK10 ingress protection.
  • Intelligent analytics: abnormal video signal detection, line crossing detection, region intrusion detection.
Inquiry
Inquiry List
Includes
  • High-level transformer*(Pass the UL Certification)
  • Special Camera Bracket.
  • One pack of screws group.
Specifications
Model
TS-CAH8260
Image Sensor
1/2.8" Progressive Scan CMOS x 4
Image Size
4096 × 1800
Lens
3.2 mm
Field of View
Pan: ≥180° ; Tilt: 85°
Electronic Shutter
1s ~ 1/10,000s ; auto / manual
Min. Illumination
Color：0.008Lux @F2.0，AGC ON
B/W：0.008Lux @F2.0，AGC ON
0Lux with IR
S/N Ratio
>50dB
IR Distance
20 m
WDR
DWDR
Day & Night
ICR auto switch
HLC
YES
Digital Defog
YES
Digital DNR
3 DNR
Video Compression
Smart H.265 / H.264 / MJPEG
H.265 Compression Standard
Main Profile
Resolution
4096×1800, 3480×1680 , 2880×1264, 2048x896, 704×320
Main Stream (S1)
4096×1800 / 3480×1680 / 2880×1264 @30fps
Sub Stream (S2)
2048x896 / 704×320 @30fps
Third Stream (S3)
704×320 @30fps
Bit Rate
128 Kbps ~ 16 Mbps
Bit Rate Type
VBR / CBR
Image Settings
ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic,Sharpen, NR,etc. adjustable through client software or web browser
ROI
Each ROI to be configured separately
Audio Compression
G711A/U
Two-way audio
YES
Network
RJ45
RS485
YES
Audio line in
1CH audio input
Audio line out
1CH audio output
Alarm Input
1CH alarm input
Alarm Output
1CH alarm output
SD card
Built-in micro SD card slot; up to 256GB
Network remote storage
YES
Remote Monitoring
Web browsing, CMS remote control
Online Connection
Support simultaneous monitoring for up to 6 users
Support multi-stream real time transmission
Network Protocol
HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/ IP, UDP, IGMP, ICMP, DHCP, PPPoE
Interface Protocol
ONVIF
Smart Alarm
Motion detection; Sensor alarm; SD card full; SD card error; IP address conflict; Network disconnection
Intelligent Analytics
Abnormal video signal detection, line crossing detection, region intrusion detection
General function
Watermark, IP address filtering, video mask, heartbeat, password protection, image distortion correction
PoE
YES
Power Supply
DC12V/ PoE
Operating Environment
- 30°C ~ 60°C (-22°F~140°F)
Humidity:less than 90% (non-condensing)
Dimensions
288.4 x 159.7 x 137.7 mm
Weight
Approx. 2100g
Installation
Ceiling mounting (wall mounting available with the junction box and bracket)
Ingress Protection
IP67 & IK10
Notice
  • Do not twist the waterproof body while installing, and not tear the warranty stickers.
  • Do not open it on your own. Please keep intense light away while installing.
  • The product is with dustproof design. Please keep the outside body clean to maintain the original function.
  • Power supply is DC12V. Please use regulated power supply.
  • When the camera is fixed, please lock the body and mount tightly to avoid falling to the ground and damaging the camera.
  • Please handle with care, this product contains highly precision components.
  • The product is with waterproof function, but it`s not an underwater camera! Do not use for diving!
※Specifications and product designs are subject to change without notice.
