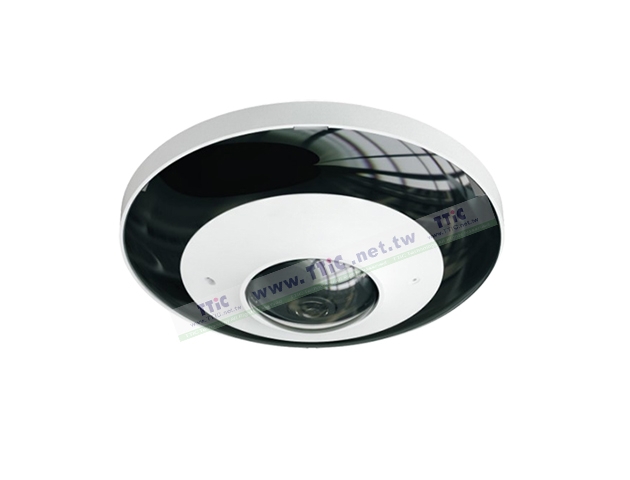

Model
IP-C9630-360 |
Image Sensor
1 / 2.9" CMOS |
Image Size
2160 × 2160 |
Electronic Shutter
1s ~ 1/100,000s |
Min. Illumination
0.068 lux @F2.0, AGC ON; 0 lux with IR |
Lens
Board 1.1mm @F2.0 |
Horizontal view Angle
180° (Desktop mounting) / 360° (Ceiling mounting) |
IR Distance
10 ~ 15 m |
WDR
Digital WDR |
Day & Night
ICR auto switch |
BLC
YES |
HLC
YES |
Digital Defog
YES |
Digital NR
3D DNR |
Video Compression
H.265 / H.264 / MJPEG |
Resolution
Mode① Fisheye+panorama+3 PTZ PAL(50Hz) : Fisheye : (2160 × 2160/1920×1920/1440×1440/ 960×960/480×480)@25fps panorama : (1920 × 1080/704×576)@15fps 3 PTZ : (960×540/480×240)*3 @15fps NTSC(60Hz) : Fisheye : (2160 × 2160/1920×1920/1440×1440/ 960×960/480×480)@30fps panorama : (1920 × 1080/704×480)@15fps 3 PTZ : (960×540/480×240)*3 @15fps
Mode② Fisheye+ 4 PTZ PAL(50Hz) : Fisheye : (2160 × 2160/1920×1920/1440×1440/ 960×960/480×480)@25fps 4 PTZ : (960× 540/480×240)*4 @15fps NTSC(60Hz) : Fisheye : (2160 × 2160/1920×1920/1440×1440/ 960×960/480×480)@30fps 4 PTZ : (960× 540/480×240)*4 @15fps
*Mode adjustment in web browser |
Bit Rate
256 Kbps ~ 10 Mbps |
Bit Rate Type
VBR / CBR |
Image Settings
ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic,Sharpen, NR,etc. adjustable through client software or web browser
|
ROI
Each ROI to be configured separately
|
Audio Compression
G.711A / U |
Two-way audio
YES |
Network
RJ45 |
RS 485
YES |
Video Output
CVBS video output ( BNC × 1) |
Audio line in
Audio Line In x 1 ; Build-in MIC x 1 |
Audio line out
Audio Line Out × 1 |
Alarm Input
1CH alarm input |
Alarm Output
1CH alarm output |
SD card
Built-in micro SD card slot; up to 256GB |
Network remote storage
YES |
Hardware Reset
YES |
Remote Monitoring
IE browsing,CMS remote control,NVR,APP |
Online Connection
Support simultaneous monitoring for up to 11 users Support multi-stream real time transmission |
Network Protocol
TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP |
Interface Protocol
ONVIF |
Smart Alarm
Motion detection; SD card error, SD card full |
General function
Watermark, video mask, password protection |
PoE
Yes |
Power Supply
DC12V/ PoE |
Power Consumption
< 10.5W |
Operating Environment
- 30°C ~ 60°C |
Dimensions
Φ 41 × 130 mm |
Weight
Approx. 450 g |
Installation
Ceiling mounting (wall mounting available with the junction box and bracket) |
