IP-C840W

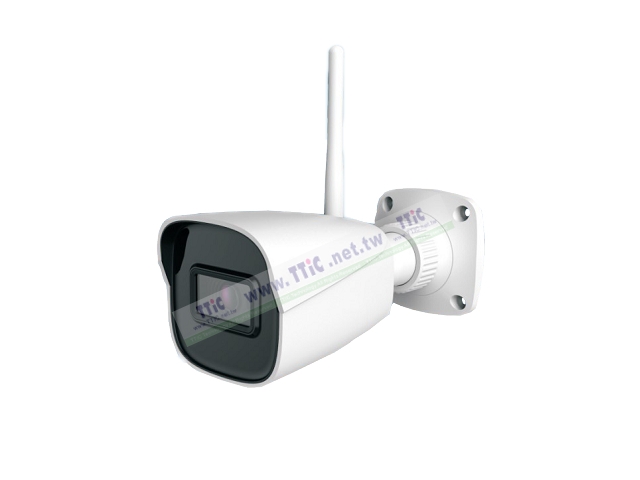

  • Item：4MP Bullet IP Camera
  • Spec.：4MP/Wi-Fi/IR 30M
Features
  • H.265/H.264 coding.
  • Max.resolution: 4MP (2560 x 1440).
  • ICR auto switch, true day / night vision.
  • 3D DNR, digital WDR, HLC, BLC, defog.
  • ROI coding.
  • 20~30m IR night view distance.
  • Built-in micro SD card slot, up to 128GB.
  • DC12V/PoE power supply.
  • P2P function optional.
  • Support Wi-Fi.
  • IP 67 ingress protection.
  • Support three streams.
  • Support remote monitoring by smart phones& tablet PCs with iOS and Android OS.
  • Intelligent analytics: object removal detection, video exception detection, line crossing and intrusion detection.
  • (Export Specifications).
Inquiry
Inquiry List
Includes
  • High-level transformer*(Pass the UL Certification)
  • Special Camera Bracket.
  • One pack of screws group.
Specifications
Model
IP-C840W
Image Sensor
1/2.7" CMOS
Image Size
2560 × 1440
Electronic Shutter
1s ~ 1/100000s
Iris Type
Fixed Iris
Min. Illumination
0.011 lux @F1.2, AGC ON; 0 lux with IR 0.04 lux @ F2.2, AGC ON; 0 lux with IR
Lens
2.8mm@F2.0, Horizontal FoV: 110°;Vertical FoV:77.6; Diagonal FoV:117°
3.6mm@F2.2, Horizontal FoV: 89°;Vertical FoV:58°; Diagonal FoV:97°
Focus
Fixed
Lens Mount
M12
Day&Night
ICR
Wide Dynamic Range
Digital WDR
BLC
YES
HLC
YES
Defog
Yes
Digital NR
3D DNR
Angle Adjustment
Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°
Video Compression
H.265 / H.264
H.265 Compression Standard
Main Profile@Leve4.1 High Tier
Resolution
4MP (2560×1440), 3MP (2304×1296), 1080P (1920×1080), 720P (1280×720), D1, CIF, 480×240
Main Stream
60Hz : 4MP/3MP/1080P(1~30fps); 50Hz : 4MP/3MP/1080P(1~25fps)
Sub Stream
60Hz : 720P(1~15fps)/D1 /CIF (1~30fps); 50Hz: 720P(1~12fps)/D1(1~25fps)/CIF (1~25fps)
Third Stream
60Hz : D1/CIF/480x240 (1~30fps); 50Hz: D1/CIF/480x240 (1~25fps)
Bit Rate
64 Kbps ~ 5 Mbps
Bit Rate Type
VBR / CBR
Image Settings
ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser
ROI
Each ROI to be configured separately
Network
RJ45
Storage
Built-in micro SD card slot, up to 128GB
Reset
Yes
Remote Monitoring
Web browsing, CMS remote control
Online Connection
Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission
Network Protocol
IPv4, IPv6, UDP, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP , HTTP, HTTPS, QoS
Interface Protocol
ONVIF
Storage
Network remote storage; micro SD card storage
Smart Alarm
Motion detection, SD card full, SD card error
Smart Events
Object removal (object left/missing detection), scene change and video blur detection, intrusion and line crossing
General Function
Watermark, IP address filtering, video mask, heartbeat, password protection
PoE
Yes
IR Distance
20 ~ 30 m
Ingress Protection
IP67
Wireless Standards
IEEE802.11b/g/n
Frequency Range
2.4GHz ~ 2.4835 GHz
Channel Bandwidth
20MHz
Security
WEP, WPA-PSK/WPA2-PSK
Wireless Range
80m
Transfer Rates
11b: 11Mbps
11g: 54Mbps
11n: up to 150Mbps
Power Supply
DC12V/PoE
Power Consumption
< 5W
Operating Environment
- 30°C ~ 60°C (-22°F~140°F) Humidity: less than 95 % (non-condensing)
Dimensions ( mm )
167.6 × 74.7 × 148.2
Weight ( net )
Approx. 0.465KG
Installation
Ceiling mounting; Wall mounting
(Export Specifications)
Notice
  • Do not twist the waterproof body while installing, and not tear the warranty stickers.
  • Do not open it on your own. Please keep intense light away while installing.
  • The product is with dustproof design. Please keep the outside body clean to maintain the original function.
  • Power supply is DC12V. Please use regulated power supply.
  • When the camera is fixed, please lock the body and mount tightly to avoid falling to the ground and damaging the camera.
  • Please handle with care, this product contains highly precision components.
  • The product is with waterproof function, but it`s not an underwater camera! Do not use for diving!
※Specifications and product designs are subject to change without notice.
