TBH-C882-30

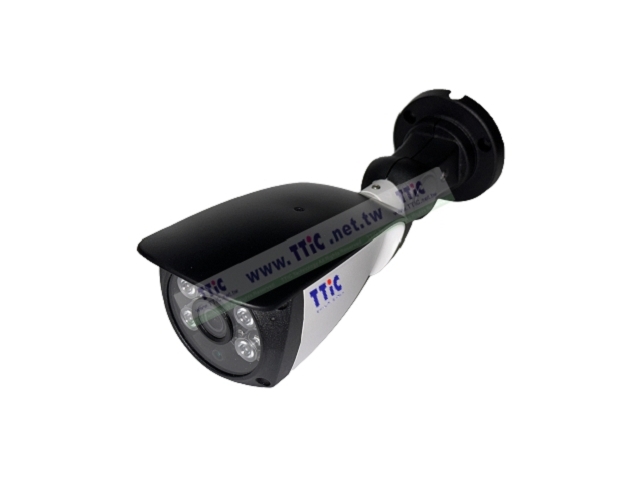

  • Item：4IN1 1080P Tube Camera
  • Spec.：AHD / 2MP / 30M IR
Features
  • 1/3” CMOS 1080P 2.0 mega pixel IR camera.
  • IR LED 30M.
  • IR Cut, accurate focus for Day & Night.
  • 3DNR/2DNR.
  • Weatherproof IP 66.
  • Mega pixel lens 3.6m/m or 6m/m.
Inquiry
Inquiry List
Includes
  • High-level transformer *1 (Pass the UL Certification ).
  • Special Camera Bracket.
  • One pack of screws group.
Specifications
Model
TBH-C882-30
System
NTSC／PAL
Pick up device
1/3" SONY CMOS:2.0Mega
Video Output
AHD / TVI / CVI / CVBS
Min. Illumination
0.01 Lux，0 Lux with IR/ON
Resolution
1920(H) x 1080(V) @ 30 FPS
S/N Ratio
More than 60 dB（AGC OFF）
Γ, Gamma Correct
0.45
AWB
Auto（2500∘K～9500∘K）
Electronic Shutter
1/60（1/50）～1/100,000
Synchronization
Internal
Frequency
15.734 KHz／60 Hz；15.625 KHz／50 Hz
Video Out
1.0 Vp-p，75 ohm
Scanning System
2：1 interlace
Coaxlal Cable Transmition Distance(3C/5C)
300/500 M
Twisted Cable Transmition Distance(Cat5.e standard)
200M
IR Distance
30M
Power
DC 12V；1A
Weight
N.W.／G.W.：0.3Kg／0.4Kg
Operating Temperature
-10℃～50℃
Dimension
170 mm x 80 mm x 75 mm
Notice
  • Do not twist the waterproof body while installing, and not tear the warranty stickers.
  • Do not open it on your own. Please keep intense light away while installing.
  • The product is with dustproof design. Please keep the outside body clean to maintain the original function.
  • Power supply is DC12V. Please use regulated power supply.
  • When the camera is fixed, please lock the body and mount tightly to avoid falling to the ground and damaging the camera.
  • Please handle with care, this product contains highly precision components.
  • The product is with waterproof function, but it’s not an underwater camera! Do not use for diving!
※Specifications and product designs are subject to change without notice.
