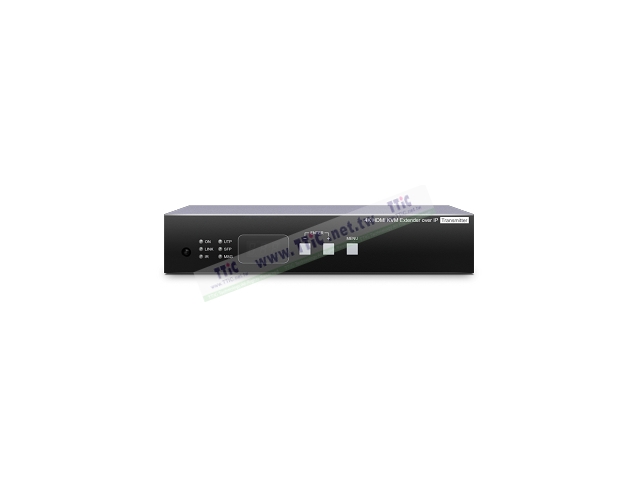

KVM-RP-B20MKH(T)

  • Item：HDMI KVM CAT5e Extender
  • Spec.：4K HDMI USB/Audio/RS232/IR CAT5e KVM Extender 140M with Fiber
Features
  • Resolution up to 4K@30Hz 4:4:4
  • Signal extension up to 150M over CAT5e (or greater), 60KM over fiber optic cable.
  • Workable with Ethernet switches for HDMI® extension, distribtuion, switching, and matrix.
  • Supports PoE (Power over Ethernet), up to 15W for power input.
  • Built-in loop-out port for an extra local HDMI® display at TX side.
  • Built-in 4 USB ports for remote control.
  • Supports up to 8 x 16 video wall.
  • Supports video scaler, 4K to 1080p/ 1080p to 4K.
  • Supports HDMI® audio embedding and extraction function.
  • Supports USB, full-duplex RS232, bi-directional IR, analog audio transmission.
  • Supports RS232 signal distribution.
  • Managed via Windows based software, Android/iOS APP, Web GUI, IR remote, panel pushbutton, Telnet API, RS232 console.
    Inquiry
    Inquiry List
    Includes
    • KVM-RP-B20MKH(T) x 1
    Specification
    ITEM NO.
    KVM-RP-B20MKH(T)
    Compliance
    HDMI 2.2 , USB 2.0/ 1.1/ 1.0
    Max. Video Resolution
    4K@30Hz
    Max. Transmission Distance
    150M over CAT5e Cable or Greater
    Audio Format
    7.1 LPCM 192kHz, Dolby True HD, DTS-HD Master Audio, ATMOS, DTS:X
    IR Support
    20-60kHz , ±45°, 5M
    Video Input
    1 x HDMI Type A / 1 x RJ45
    Video Output
    1 x RJ45 / 1 x HDMI Type A
    Video Loop-out
    1 x HDMI Type A / -
    Analog Audio Input
    1 x (3.5mm) Stereo Phone Jack(Line In) / 1 x (3.5mm) Mono Phone Jack (Mic In)
    Analog Audio Output
    1 x (3.5mm) Stereo Phone Jack(Line Out) / 1 x (3.5mm) Stereo Phone Jack (Line Out)
    USB Interface
    1 x USB Type B (USB 2.0) / 2 x USB Type A (USB1.1) ; 2 x USB Type A (USB 2.0)
    IR Interface
    1 x (3.5mm) Stereo Phone Jack / 1 x (3.5mm) Stereo Phone Jack
    RS232 Interface
    1 x DB9 Female / 1 x DB9 Male
    Link Interface
    1 x RJ45, 1 x SFP / 1 x RJ45, 1 x SFP
    Power Supply
    DC 12V 1.5A / DC 12V 1.5A
    Power Consumption
    600mA / 500mA
    Operation
    0 ~ 55℃
    Storage
    -20 ~ 85℃
    Humidity
    Up to 95%
    Dimension
    210 x 123 x 40mm / 167 x 103 x 40mm
    Weigh
    680g / 500g
    Notice
    • Do not expose in moist environment, this product is not waterproof, make sure to install location.
    • Please handle with care, this product contains highly precision components.
    ※Specifications and product designs are subject to change without notice.
