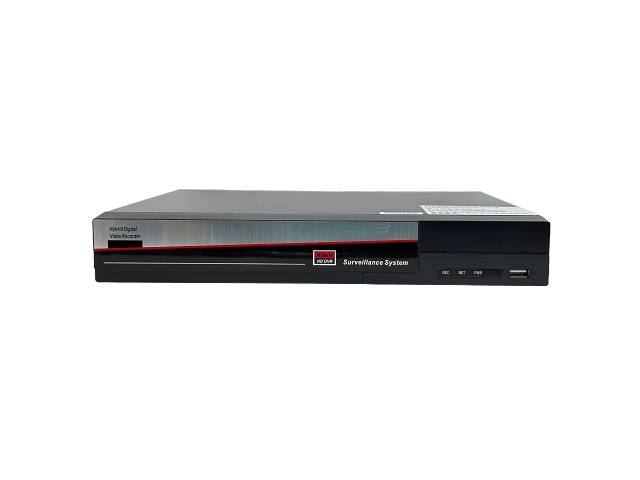

DVR-AHD9906K4-H1

  • Item：4+2CH Hybrid Recorder
  • Spec.：1 HDD/4 Audio In/4 Alarm In
Features
  • Video Input Support: Capable of receiving 5MP/4MP/1080P/720P (AHD / TVI / CVI / Analog) video inputs, And supports coaxial radio function.
  • IP Camera Integration: Supports up to 2 IP camera inputs for extended video sources.
  • Video Compression Standard: Features H.265 dual-stream video compression for optimized storage and bandwidth.
  • Security Management: Offers multi-level password protection and management authority settings to ensure system security.
  • Mobile Device Monitoring: Supports remote viewing via mobile networks on Android, iPhone, and iPad devices.
  • Playback Mode: Can search by designated time, event, smart search mode, and quickly play back with the timeline function.
  • Data Backup: Facilitates data backup via 2 USB ports or through network remote backup.
  • Operation Control: Equipped with mouse control for On-Screen Display (OSD) and PTZ (Pan/Tilt/Zoom) functions.
  • Status Indicators: The front panel features recording, network, and power indicator lights for easy status identification.
  • Remote Notifications: Supports remote video push notification functionality for instant alerts.
  • Camera Name Display: Live and playback screens can display camera names, supporting alphanumeric characters or up to 15 Chinese characters.
Inquiry
Inquiry List
Includes
  • DC Power x1、Manual x1、Mouse x1
Specifications
Model
DVR-AHD9906K4-H1
Power Requirements
Power input is DC12V, supporting 50Hz/60Hz frequency.
Recording Modes
Supports multiple recording modes, including: Manual, Continuous, Schedule, Motion Detection, Alarm Linkage, and combined modes such as Continuous+Motion, Continuous+Alarm, Continuous+Motion Alarm.
Storage Device
Supports installation of one 3.5-inch SATA interface hard drive, and the hard drive supports: 1TB~16TB (depending on brand and compatibility).
Audio Input/Output
Provides 4 audio inputs (RCA connectors) and 1 audio output.
Frame Rate (Live Display)
Achieves 80fps at 5MP resolution; for 4MP, 3MP, 1080P, 720P, and WD1 resolutions, a real-time display rate of 120fps is available.
RS-485 Interface
Built-in RS-485 communication interface for controlling PTZ (Pan/Tilt/Zoom) cameras and connecting control keyboards to operate the main unit.
Recording Bitrate Settings
Supports H.265/H.264, Main stream bitrate can be set between 768kbps and 8Mbps; sub-stream bitrate can be set between 128kbps and 1024kbps.
Playback Speed
Supports forward and reverse playback with speed options of: x1, x2, x4, x8, x16, x32 speed.
Product Net/Gross Weight
Net weight: 0.7kg; Gross weight: 0.85kg (excluding HDD).
Network Connectivity
Supports remote monitoring via IE browser; also provides Chinese 100-channel Central Monitoring Software (CMS).
Alarm I/O
Equipped with 4 alarm inputs and 1 alarm output.
On-Screen Display (OSD)
OSD functions include: Hard Drive Status, Time Information, Camera Configuration, Recording Settings, System Menu, and other contents.
Recording Frame Rate (NTSC)
5MP Lite format supports 40 fps; 1080P (1920x1080) format supports 60 fps; 720P/WD1 (960x480) format supports 120 fps. Recording frame rate for each video input channel can be adjusted independently.
Control Accessories
This product comes standard with a mouse.
Playback Channels
The local unit supports 4-channel simultaneous playback; remote monitoring also supports 4-channel simultaneous playback.
Motion Detection
Supports motion detection with configurable 22 x 18 detection zones.
Dimensions
Overall dimensions are 300mm (W) x 50mm (H) x 250mm (D).
Video Output Interface
Features 1 CVBS (Spot) output, 1 VGA output (max. 1920x1080P), and 1 HDMI output (max. 1920x1080P).
Playback Search Function
Offers various playback search functions, including: Timeline Search, Precise Time Search, Recorded File Search, and Event Log Search.
Video Input Interface
Provides 4 analog video inputs, supporting 4 mixed modes (AHD/TVI/CVI/CVBS); additionally, it supports expansion to 2 IP camera inputs.
Product Notice
  • Do not expose in moist environment, this product is not waterproof, make sure to install in proper location.
  • Please handle with care, this product contains highly precision components.
※Specifications and product designs are subject to change without notice.
