IP-C806-A

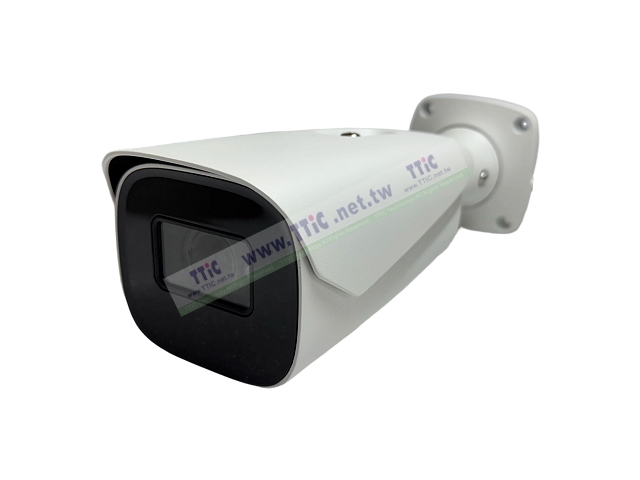

  • Item：Network Outdoor Camera
  • Spec.：6MP/IR 70M/SD Card
Features
  • Equipped with advanced AI analytics, featuring Face Detection, Human/Vehicle classification, and specialized alarms for Line Crossing, Intrusion, and system anomalies.
  • Integrated high-intensity IR LEDs, delivering an exceptional night vision range of 70 to 100 meters for long-distance monitoring.
  • Equipped with a megapixel 2.8-12mm motorized zoom lens, ensuring precision focusing and clarity throughout day and night transitions.
  • Supports comprehensive local and network-based storage, playback, and backup solutions to ensure flexible data management.
  • Utilizes efficient H.265+/H.264/MJPEG video encoding with a versatile triple-stream design for optimized bandwidth and storage performance.
  • Features a built-in MicroSD card slot, supporting high-capacity storage up to 256GB for reliable edge recording redundancy.
  • Provides full compatibility with IE, Chrome, and Edge browsers, complemented by CMS central management software for streamlined operation.
  • Features 2D and 3D Digital Noise Reduction (DNR) technology to ensure crisp, high-quality imagery even in low-light environments.
  • Automatic ICR (Infrared Cut-filter Removable) dual filters allow for seamless transition between color and monochrome modes based on ambient light.
Inquiry
Inquiry List
Includes
  • High-level transformer *1 (Pass the UL Certification )
  • One pack of screws group
Specifications
Product Model
IP-C806-A
Environmental Adaptability
Operates reliably within a broad temperature range of -30℃ to 60℃.
Audio Interface
Supports 1-channel audio input and 1-channel audio output.
Network Protocols
Equipped with RJ45 interface; supports UDP, IPv4/IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, RTMP, HTTP, HTTPS, and QoS.
Light Compensation
Features Backlight Compensation (BLC) and Highlight Compensation (HLC) for optimized imaging in challenging light.
Image Sensor
Utilizes a high-performance 1/2.7” CMOS sensor.
Wide Dynamic Range
Advanced 120dB WDR technology for superior detail in high-contrast scenes.
Minimum Illumination
Color: 0.02Lux (F/1.6); B/W: 0 Lux with IR illumination active.
Digital Shutter Speed
Electronic shutter range from 1/3s to 1/100,000s.
Video Stream Options
Supports multiple resolutions: 3296 x 1856, 2592 x 1944, 1920 x 1080, 1280 x 720, and 704 x 480 @30fps.
Physical Dimensions
279mm (L) x 100mm (W) x 89mm (H).
Casing & Protection
Robust aluminum alloy housing with IP67-rated weather resistance.
Power Consumption
DC12V 1A or PoE (Power over Ethernet); Maximum consumption of 12.5W.
Additional Interfaces
Includes 1 Alarm I/O and 1 CVBS video output for expanded connectivity.
White Balance
TTL Auto-tracking white balance within a color temperature range of 2500ºK to 9500ºK.
Image Quality Control
Adjustable VBR (Variable Bit Rate) or CBR (Constant Bit Rate) modes.
System Standard
Selectable NTSC or PAL standards depending on the region.
Effective Resolution
Delivers high-definition imaging at up to 3296 x 1856 pixels.
Intelligent Analysis
Supports motion detection, image mirroring, and screen rotation functions.
Weight
Net weight approximately 1.04 Kg.
Image Parameters
Fully adjustable settings for saturation, brightness, contrast, and sharpness.

Notice

  • Do not twist the waterproof body while installing, and not tear the warranty stickers.
  • Do not open it on your own. Please keep intense light away while installing.
  • The product is with dustproof design. Please keep the outside body clean to maintain the original function.
  • Power supply is DC12V. Please use regulated power supply.
  • When the camera is fixed, please lock the body and mount tightly to avoid falling to the ground and damaging the camera.
  • Please handle with care, this product contains highly precision components.
  • The product is with waterproof function, but it`s not an underwater camera! Do not use for diving!
※Specifications and product designs are subject to change without notice.
