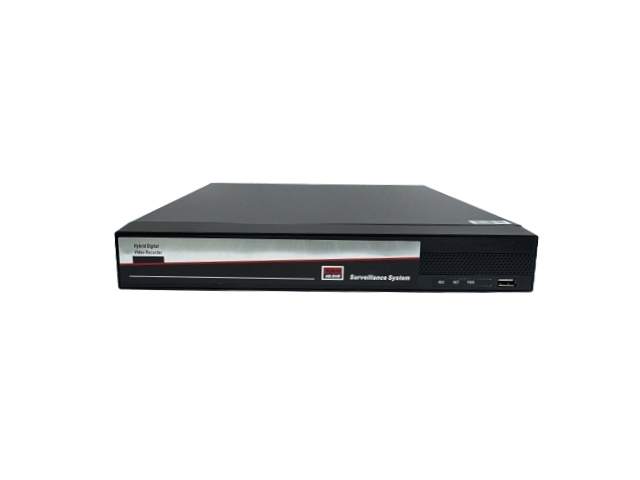

NVR-9904G-H1(4K)

  • Item：4CH Network DVR
  • Spec.：1 HDD/4 Audio In
Features
  • Supports H.264/H.265 video compression, providing high-quality recording and effectively saving storage space.
  • Intuitive Chinese graphical user interface (GUI) offers a user-friendly operating experience.
  • The front panel is equipped with clear recording, network, and power indicator lights for quick monitoring of device status.
  • Supports up to 8-megapixel network camera video input, delivering delicate surveillance footage.
  • Provides multi-level account password and permission management functions to ensure system operation security and data privacy.
  • Features two-way audio with 1 dedicated interface for real-time voice communication.
  • Recording data can be backed up via dual USB 2.0 ports or network.
  • Supports remote management and settings via browsers (IE/Chrome/Edge) and central control software.
  • Equipped with intelligent analysis functions such as area intrusion, line crossing, and motion detection, enhancing monitoring accuracy.
  • Camera names in monitoring and playback screens can be customized as needed for easy identification and management.
  • Capable of integrating with DVR off-site backup mechanisms, enhancing data reliability and system resilience.
  • Supports mobile monitoring push notifications, receiving real-time alarm notifications via Android, iPhone, and iPad applications.
    Inquiry
    Inquiry List
    Includes
    • DC Power x1、Manual x1、Mouse x1
    Specifications
    Product Model
    NVR-9904G-H1
    Video Input
    Supports 4 channels of network camera video signal input, providing an efficient surveillance solution.
    Recording Frame Rate
    All 4 video channels support 8MP, 5MP, 4MP, 3MP, 1080P, and 720P resolutions, with a recording frame rate up to 30fps. The frame rate and image quality of each channel can be independently and finely adjusted, with a main stream bitrate range of 512Kb to 1Mb.
    Screen Display Mode
    Provides 1-split and 4-split screen display modes, and supports automatic screen cycling and multi-stage digital zoom functions, convenient for monitoring and detail viewing.
    Recording Configuration
    Offers two recording mode switches: automatic and manual. Recording types include continuous recording, motion detection recording, alarm-linked recording, and intelligent recording, meeting diverse surveillance needs.
    Audio Input/Output
    Equipped with 1 external audio input and 1 audio output interface, supporting audio monitoring and intercom functions.
    Supports use with built-in audio from network cameras (subject to brand and compatibility).
    Motion Detection Function
    Supports 4 motion detection area settings and provides 8 levels of sensitivity adjustment, ensuring accurate event detection.
    Data Backup Options
    Offers various backup methods: via USB 2.0 interface, remote network backup, or data archiving using central monitoring software (CMS).
    Internal Storage
    Can accommodate 1 x 3.5-inch SATA interface hard drive, with single hard drive support: 1TB~16TB (subject to brand and compatibility).
    Network Interface
    Equipped with 1 x RJ45 1000Mbps Ethernet interface, ensuring high-speed and stable network connection.
    Network Protocol Support
    Extensive support for various network protocols, including TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPS, 802.1x, ensuring flexibility in network deployment.
    Power Specification
    Uses DC12V 1.5A power input, with device power consumption of approximately 10W (excluding hard drive), offering energy efficiency.
    External Dimensions
    Product external dimensions are 300mm (width) x 250mm (depth) x 45mm (height), with a compact design for easy installation.
    Operating Environment Temperature
    Suitable for operating environments from -10℃ to 50℃, ensuring stable operation under various climate conditions.
    Notice
    • Do not expose in moist environment, this product is not waterproof, make sure to install in proper location.
    • Please handle with care, this product contains highly precision components.
    ※Specifications and product designs are subject to change without notice.
